1.产 品 资 料 介 绍：
一、产品简介
VIM1-10G8X 是 Extreme Networks 推出的 多功能接口模块（Versatile Interface Module），主要用于扩展交换机的高速上联能力。该模块可提供多个 10G 光口，为数据中心或园区网络核心层提供更高的带宽与灵活的连接方式。
二、主要功能
为主机设备扩展 8 个 SFP+ 10G 光口；
支持堆叠连接（SummitStack 功能），实现多台交换机的统一管理；
提供高带宽上行链路或汇聚端口，用于服务器、核心交换机互联；
支持模块热插拔，无需中断整机运行；
与主机系统协同运行，受控于交换机主控板。
三、技术规格
型号：VIM1-10G8X
接口类型：8 个 SFP+ 光纤接口
速率：10Gbps（每端口）
聚合带宽：最大 80Gbps（8×10G）
支持堆叠：可通过模块端口实现 SummitStack 功能
兼容设备：适用于 Extreme Networks X650、X670 系列等支持 VIM 插槽的交换机
功耗：约 25–30 瓦（根据配置略有不同）
尺寸：高约 4.3 cm，宽约 13.2 cm，深约 25 cm
重量：约 0.9 kg
安装方式：插槽式模块化结构，支持热插拔
散热方式：依靠整机风道冷却
Extreme Networks VIM1-10G8X多功能接口模块 英文介绍
1、 Product Introduction
VIM1-10G8X is a Versatile Interface Module launched by Extreme Networks, mainly used to expand the high-speed uplink capability of switches. This module can provide multiple 10G optical ports, providing higher bandwidth and flexible connection methods for the core layer of data centers or campus networks.
2、 Main functions
Expand 8 SFP+10G optical ports for host devices;
Support stacked connections (Summit Stack function) to achieve unified management of multiple switches;
Provide high bandwidth uplink or aggregation ports for server and core switch interconnection;
Support module hot plugging without interrupting the overall operation of the machine;
Operates in conjunction with the host system and is controlled by the switch control board.
3、 Technical specifications
Model: VIM1-10G8X
Interface type: 8 SFP+fiber optic interfaces
Speed: 10Gbps (per port)
Aggregate bandwidth: maximum 80Gbps (8 × 10G)
Support stacking: SummitStack function can be implemented through module ports
Compatible devices: Suitable for Extreme Networks X650, X670 series and other switches that support VIM slots
Power consumption: approximately 25-30 watts (slightly different depending on configuration)
Dimensions: Approximately 4.3 cm in height, 13.2 cm in width, and 25 cm in depth
Weight: Approximately 0.9 kg
Installation method: slot type modular structure, supporting hot plugging
Cooling method: relying on the air duct of the whole machine for cooling

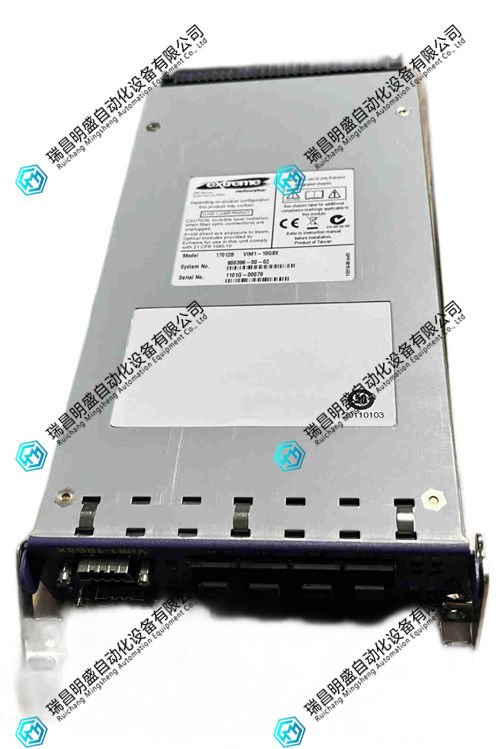

Extreme Networks VIM1-10G8X多功能接口模块 产品展示
