ABB 5SHY3545L0014 3BHE023784 3BHE019719R0101 GVC736BE101 可控硅模块 PDF资料
1.产 品 资 料 介 绍：
产品定位
该模块属于 ABB 的功率电力电子模块类别（可控硅/IGCT/可控模块）——也可用于高功率整流/逆变、驱动大电流设备的应用。
型号 “5SHY3545L0014” 与 “GVC736BE101” 提及可控硅模块、THYRISTOR 模块或功率半导体模块，相对于低压控制模块更偏“功率部件”而非逻辑控制卡。
用途通常包括大型电机驱动、变频器、高压整流、重载工业设备、变电系统等场景。
主要特点
高功率承载：
模块设计支持大电流、大电压环境，对负载能力要求极高。适用于工业整流、逆变、驱动大功率设备。可控硅／功率半导体技术：
使用可控硅（thyristor）、IGCT（集成门极换流晶闸管）或类似功率器件技术，以实现大功率控制。工业级设计：
具备优良的热管理、散热结构和高电压绝缘设计，适合严苛工业环境（如高温、高振动、大电流场合）。兼容系统集成：
模块通常与 ABB 的驱动、变频器、DCS、整流系统等配合使用，可插入或安装于特定机柜或系统中。可靠性与保护机制：
包含过流、冲击电流、短路、温度异常等保护设计，保障模块在运行中安全稳定。模块化封装：
便于替换维修、系统升级或扩容。用户可根据系统需求更换模块或整合至更大功率系统。典型应用广泛：
大型电机驱动系统（如冶金、采矿、石化）
高压整流／逆变系统
可再生能源系统、高功率变换器
电力系统的功率控制与转换单元
ABB 5SHY3545L0014 3BHE023784 3BHE019719R0101 GVC736BE101 可控硅模块 英文介绍
Product positioning
This module belongs to ABB's power electronics module category (thyristor/IGBT/controllable module) - it can also be used for high-power rectification/inversion and driving high current equipment applications.
The models "5SHY3545L0014" and "GVC736BE101" mention thyristor modules, THYRISTOR modules, or power semiconductor modules, which are more focused on "power components" rather than logic control cards compared to low-voltage control modules.
The applications usually include large motor drives, frequency converters, high-voltage rectifiers, heavy-duty industrial equipment, substation systems, and other scenarios.
Main Features
High power carrying capacity:
The module design supports high current and high voltage environments, with extremely high requirements for load capacity. Suitable for industrial rectification, inversion, and driving high-power equipment.
Controllable silicon/power semiconductor technology:
Use thyristor, IGCT (integrated gate commutated thyristor) or similar power device technologies to achieve high-power control.
Industrial grade design:
Featuring excellent thermal management, heat dissipation structure, and high-voltage insulation design, it is suitable for harsh industrial environments such as high temperature, high vibration, and high current situations.
Compatible system integration:
Modules are usually associated with ABB's drivers, frequency converters DCS、 The rectifier system can be used in conjunction with other components and can be inserted or installed in specific cabinets or systems.
Reliability and protection mechanism:
Including protection designs for overcurrent, surge current, short circuit, temperature anomalies, etc., to ensure the safe and stable operation of the module.
Modular packaging:
Easy to replace, repair, upgrade or expand the system. Users can replace modules or integrate them into higher power systems according to system requirements.
Typical applications are widely used:
Large motor drive systems (such as metallurgy, mining, petrochemicals)
High voltage rectification/inverter system
Renewable energy systems, high-power converters
Power Control and Conversion Unit of Power System

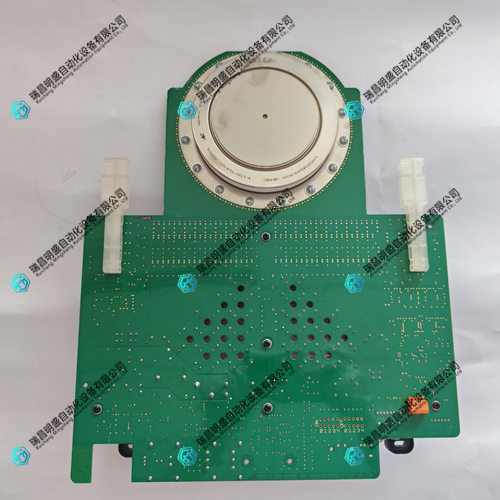

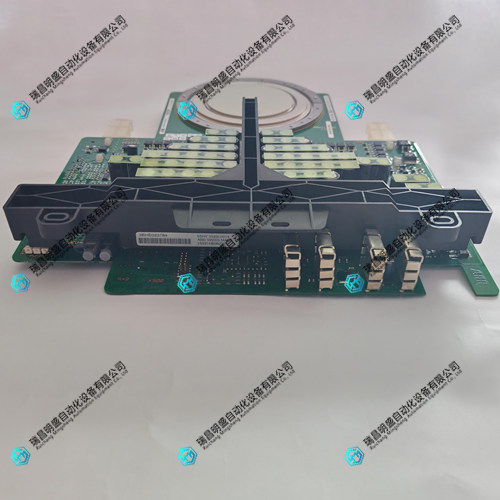

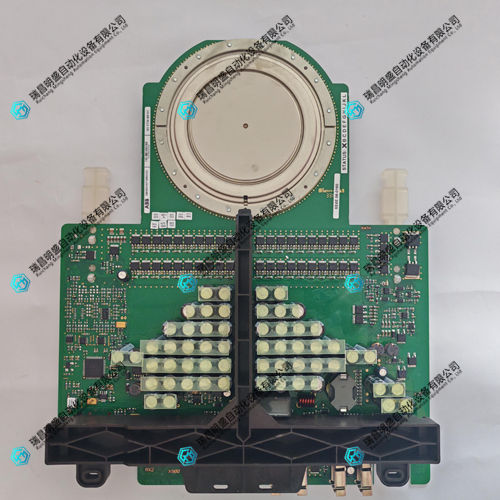

ABB 5SHY3545L0014 3BHE023784 3BHE019719R0101 GVC736BE101 可控硅模块 产品展示
