TRICONEX 3805E模拟输出模块 PDF资料
1.产 品 资 料 介 绍：
TRICONEX 3805E 模拟输出模块 产品特点
产品概述：
TRICONEX 3805E 是 Tricon 安全控制系统（Tricon Safety System）中的关键模拟输出模块，用于将数字控制信号转换为工业现场可用的模拟信号，实现对执行器、阀门、调节器等设备的精确控制。输出类型：
支持多路独立模拟输出通道（电流/电压型），常用于 4–20 mA 或 0–10 V 信号输出。
可直接驱动阀门定位器、伺服控制器和其他工业执行设备。
三模冗余 (TMR) 架构：
模块设计符合 Triconex TMR 标准，三个独立通道同时运行，通过投票机制实现容错。
提高系统可靠性和安全性，即使单通道出现故障，系统仍能正常运行。
高精度与稳定性：
输出信号精度高，响应迅速，满足工业过程控制对精度和动态响应的严格要求。
支持线性化和信号校准功能，确保输出信号与实际控制需求一致。
诊断与自检功能：
内置自检和故障检测机制，实时监控模块状态和输出通道健康情况。
异常情况下自动隔离故障通道，向主处理器报警，提高系统可靠性。
系统集成：
可插入 Triconex 系统机架，与 3008 主处理器、3625/3664 I/O 模块及 HMI 操作面板无缝协作。
支持与上位机、控制系统或安全仪表系统 (SIS) 集成，实现闭环控制。
工业级环境适应性：
具备抗电磁干扰、防震、防尘、防潮湿等特性，可在高温、高湿或严苛工业环境下稳定运行。
安全与应用：
符合 IEC 61508 SIL3 安全标准，适用于关键安全控制系统。
广泛应用于石油化工、炼油厂、天然气平台、电厂及海上平台的过程控制、阀门调节及紧急停机系统。
TRICONEX 3805E模拟输出模块 英文介绍
TRICONEX 3805E Analog Output Module Product Features
Product Overview:
TRICONEX 3805E is a key analog output module in the Tricon Safety System, used to convert digital control signals into analog signals that can be used on industrial sites, achieving precise control of actuators, valves, regulators, and other equipment.
Output type:
Supports multiple independent analog output channels (current/voltage type), commonly used for 4-20 mA or 0-10 V signal output.
It can directly drive valve positioners, servo controllers, and other industrial execution equipment.
The third mock examination Redundancy (TMR) architecture:
The module design complies with the Triconex TMR standard, with three independent channels running simultaneously and fault tolerance achieved through a voting mechanism.
Improve system reliability and security, even if a single channel fails, the system can still operate normally.
High precision and stability:
The output signal has high accuracy and fast response, meeting the strict requirements of industrial process control for accuracy and dynamic response.
Support linearization and signal calibration functions to ensure that the output signal is consistent with the actual control requirements.
Diagnostic and self checking functions:
Built in self checking and fault detection mechanism, real-time monitoring of module status and output channel health.
Automatically isolate the faulty channel in abnormal situations, alert the main processor, and improve system reliability.
System integration:
It can be inserted into the Triconex system rack and seamlessly works with the 3008 main processor, 3625/3664 I/O modules, and HMI operation panel.
Support integration with upper computer, control system or Safety Instrumented System (SIS) to achieve closed-loop control.
Industrial grade environmental adaptability:
It has the characteristics of anti electromagnetic interference, shock resistance, dust prevention, moisture resistance, etc., and can operate stably in high temperature, high humidity or harsh industrial environments.
Security and Application:
Compliant with IEC 61508 SIL3 safety standard, suitable for critical safety control systems.
Widely used in process control, valve regulation, and emergency shutdown systems for petrochemicals, refineries, natural gas platforms, power plants, and offshore platforms.

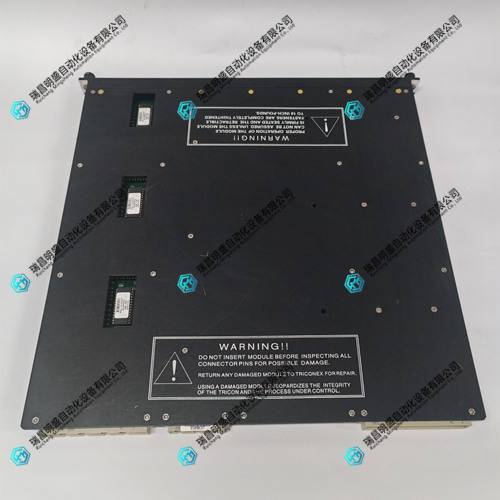

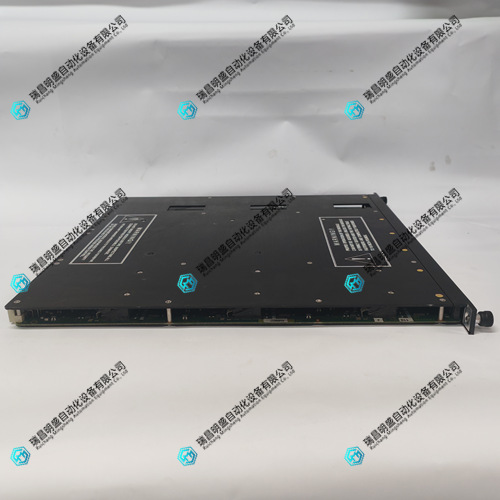

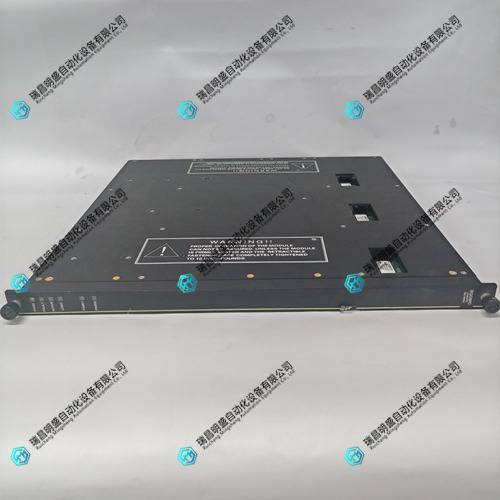

TRICONEX 3805E模拟输出模块 产品展示
